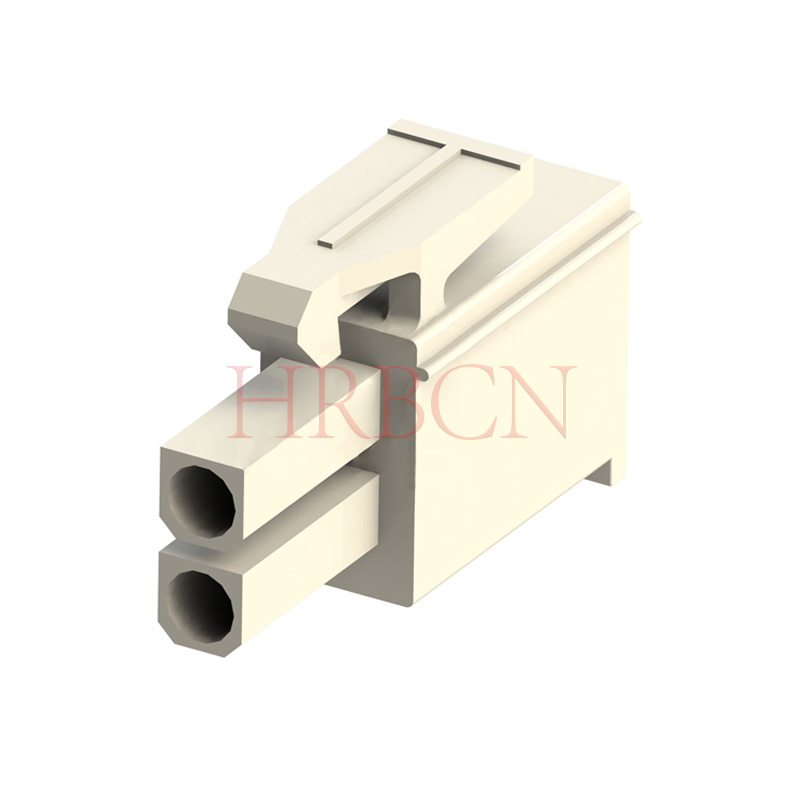

FL-4.14mm Connector Single Row Wiring Housing P1010-1*2-W-H

Describe:

HRB 4.14 pitch wire-to-wire, wire-to-board connector system consists of connector housing, crimp terminals and headers (wafers), usually in male crimp housing, female crimp housing, male and female crimp terminals, right angle and Vertical pin header (wafer).

P1010-1×NNH (nylon UL94V-2, natural color) & P1010-1×NWH (nylon UL94V-0, white) series are male connector electrical enclosures, single row, available in 1-pole to 3-pole circuits, with T1010 series female terminals (AWG #18-22; AWG #24-26), tin and gold plated for customer choice), used with P1020-2×NNH (nylon UL94V-2, natural color) and P1020-2× Used in conjunction with NWH, (nylon UL94V-0, white) series (wire-to-wire connector), and M1030, M1030R series headers (wafer) (wire-to-board).

Technical Parameters：

1) Rated current: 7A AC, DC

2) Rated voltage: 600V AC, DC
3) Operating temperature: V2: -25ºC to +85ºC
                                  V0: -40ºC to +105ºC
4) Contact resistance: maximum 10mΩ
5) Insulation resistance: minimum 1000MΩ.
6) Withstand voltage: 1500V AC/minute
7) Material: NylonUL94V-2/NylonUL94V-0
8) Shell retention requirement: 4.0kg (minimum)
9) Wire size: AWG #18 to #26

Ordering Information:

HRB 4.14 pitch single row, 2 and 3 circuit, UL 94V-2, UL 94V-0, natural and cream.

P1010-1×N-N/W-H

         ①    ②  ③    ④     ⑤

①: HRB product series number

②: Pin title line number

③: Number of circuits/poles per row

④: Crimp shell color: natural/white

⑤: Connector type: Housing

P1020-1xN-NH& P1010-1xN-N-Hcatalog.pdf
