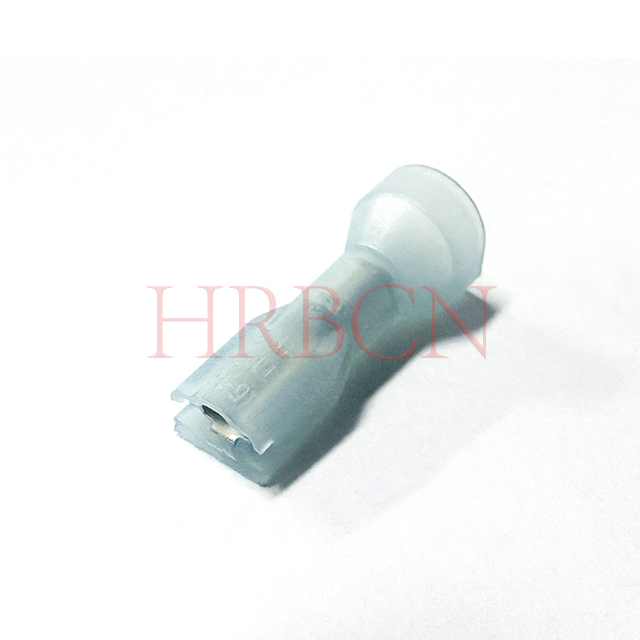

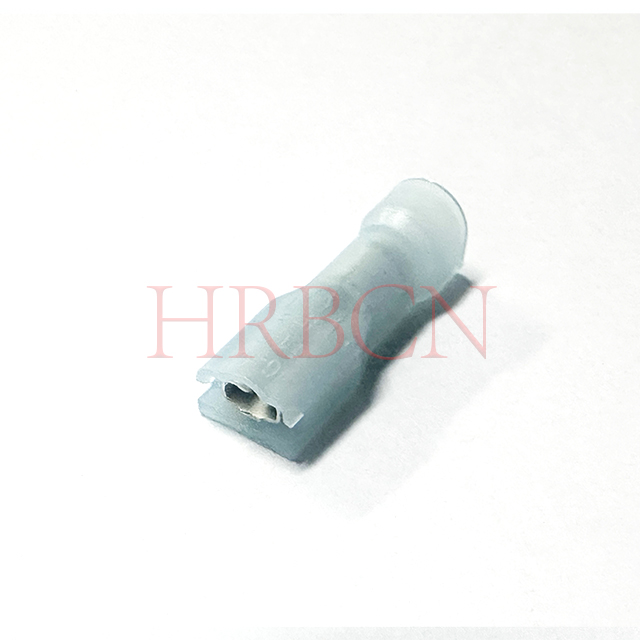

AWG16-14 1.31-2.08mm² Straight Insulated Female Receptacle 2.8mm(0.110")

M6350FNL-1(5)-b; M6350FNL-1(5)-b1; M6350FNL-1(8)-b; M6350FNL-1(8)-b1
Quick Disconnect Terminal Type : Receptacle
Wire Size: AWG16-14(1.31-2.08mm²)
Mating Tab Width: 2.8(0.110")
Mating Tab Thickness : 0.5mm/0.8mm
Compatible Insulation Diameter Range: 4.06mm/6.6mm
Availability:
Quantity:
Inquire Add to Basket

  • M6350FNL-1(5)-b; M6350FNL-1(5)-b1; M6350FNL-1(8)-b; M6350FNL-1(8)-b1

  • HRB

  • 8536909000

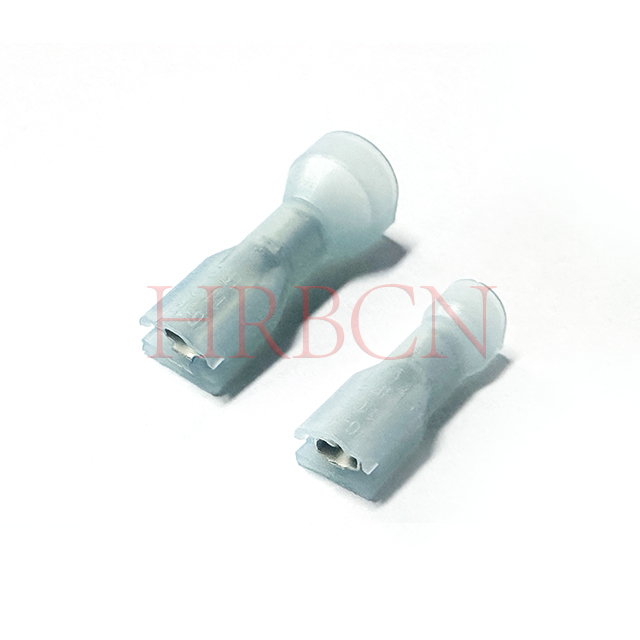

P/N Definition

HRB P/NMating Tab Thickness
Compatible Insulation Diameter RangeSPQ(pcs)
M6350FNL-1(5)-b2.8x0.5mm4.06mm1000/bag
M6350FNL-1(5)-b12.8x0.5mm6.60mm1000/bag
M6350FNL-1(8)-b2.8x0.8mm4.06mm1000/bag
M6350FNL-1(8)-b12.8x0.8mm6.60mm1000/bag

  • Type: M=Finished

  • Product Type: 6350=Fully insulated Straight Female Terminal

  • F=All inclusive insulation

  • N=Nylon

  • Packaging method: S=strip L=loose piece

  • Series: 1=2.8mm(0.110 in.)

  • b=blue(16-14 AWG), Ins. Dia, Max: 4.06; b1=blue(16-14 AWG), Ins. Dia, Max: 6.60

Technical Parameters

  • Current Rating: 10A AC, DC

  • Voltage Rating: 300V AC, DC

  • Operating Temperature: -25 ºC to +105 ºC

  • Material: Housing: Nylon66 UL 94V-2; Terminal: Brass. Tin-plated

  • Tab Size: 2.8x0.8mm or 2.8x0.5mm

  • Applicable wire: AWG16-14(1.31-2.08mm²)

  • Compatible Insulation Diameter Range: 4.06mm/6.6mm

  • The insertion force and male terminal: ≤7.8kg

  • The withdrawal force and male terminal: ≥3.0kg

  • Line Terminal and the force: ≥10.0kg

Product Feature

Terminal Features : Wire Stop

Capacity: Single

Crimp: F-Crimp

Barrel Type: Closed

Terminate to: Wire&cable

With Insulation: Fully insulated

Mating Retention Type: Dimple lock



Compliance

  • EU RoHS Directive(EU) 2015/863 amending Annex II to Directive 2011/65/EU

  • End-of Life Vehicles Directive(2000/53/EC)

  • AfPS GS 2019: 01 PAK-Polycylic Aromatic Hydrocarbons(PAHs)

  • European Regulation POPs (EU) 2019/1021

  • European Regulation POPs (EU) 2024/2570

  • European Regulation POPs (EU) 2025/718

  • European Regulation POPs (EU) 2023/1608

  • European Regulation POPs (EU) 2019/1021

  • European Regulation POPs (EU) 2025/843

  • European Regulation POPs (EU) 2025/1930

  • Regulation (EC) Np 1907/2006 concerning the REACH


Product certificates

Safety approvals&certification: UL&cUL

UL Flammability Rating: UL 94V-2


Universal fully insulated quick-connect terminals are widely applied in various fields, specifically including:
  1. Home Appliances: HVAC systems, refrigerators, washing machines, dishwashers, ovens, and water heaters, providing safe and convenient wiring connections for household electrical components.
  2. Automotive: Vehicle wiring systems, including lighting, sensors, actuators, and EV auxiliary systems, ensuring stable connection even under vibration.
  3. Industrial Controls: Motors, drives, power supplies, PLCs, sensors, and control panels, meeting the needs of industrial low-voltage wiring.
  4. Electronics & Lighting: Power supplies, LED drivers, consumer electronics, and audio equipment, with reliable insulation and quick connection performance.
General Purpose: Suitable for low/medium voltage, small current, and safe quick-disconnect low-voltage power and signal connections, widely used in household appliances, automotive, industrial, and electronic equipment fields.
