Product Technical data:
Rated Voltage
| 600V AC/DC
|
| Temperature Range
| -40℃~+125℃ |
| Rated Current | 15A Max.
| Contact Resistance
| 10mΩMax. |
Withstanding Voltage
| 2200V/1 Minute | UL | E304945 |
Product Ordering Information:
Product Type
| Pin
| Color
| P/N
| Used with Terminal | Applicable Wire | Mating Connector |
Male Housing: P30508 |
2×3 2×5
2×6 2×10 |
Black | C key: P30508-2×N-C-B-X D key: P30508-2×N-D-B-X
E key: P30508-2×N-E-B-X | T30381PS-XXX
| AWG: 16#~20# | WTB(180 degree):
M34508-2×N-X-B-X-X WTB(90 degree): M34508R-2×N-X-B-X-X |
| T30381PS-XXA | AWG: 20# |
| T30381PS-XXB | AWG: 14#~16# |

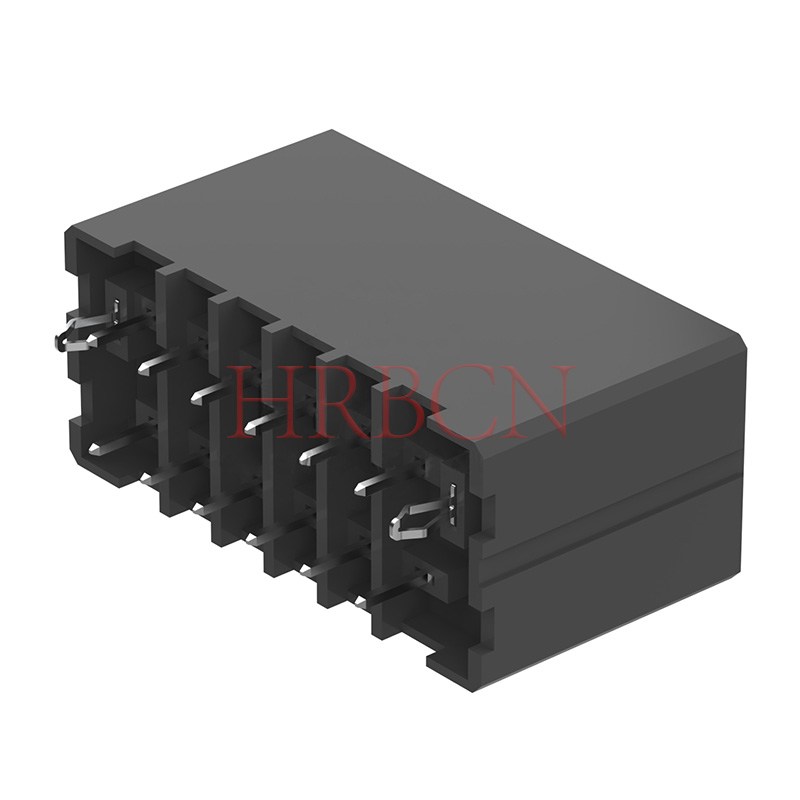

| 180 degree header: M34508 |
2×3 2×5
2×6 |
C key: M34508-2×N-C-B-X D key: M34508-2×N-D-B-X
E key: M34508-2×N-E-B-X
| / | / | BTW: P30508-2×N-X-B-X |
|
|
| 90 degree header: M34508R
|
C key: M34508R-2×N-C-B-X D key: M34508R-2×N-D-B-X
E key: M34508R-2×N-E-B-X
| / | / | BTW: P30508-2×N-X-B-X |
|
|
